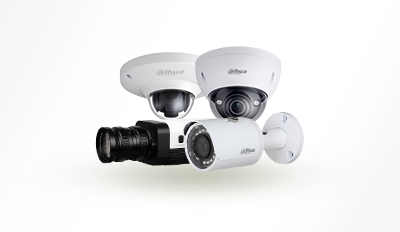

Network Cameras

Innovative Technology | Reliable Quality | End-to-End Service

As an innovation leader, Dahua Technology is committed to offering cutting-edge technologies and products, such as multi-sensor panoramic cameras, ePoE for 800m power and data transmission over Ethernet cable, and Smart Codec to improve encoding efficiency and save bandwidth.

Multiple product levels are available to fulfill various demands. The Ultra Series is for professionals who demand the latest innovations and best quality. Eco-Savvy Series is for professional who looks for cost performance balance while Lite Series is for customers who care about quality but have a tight budget.

Network cameras are widely used in various applications and vertical industries. Face Recognition cameras can be used in entrance & exit, smart retail, public areas, and other scenarios to improve operation efficiency. ePoE with extended reach distance is widely applicable for stadiums, parking lots, etc., to save on cabling costs.

Products

Ultra-AI Series
Pro-AI Series
Lite-AI Series
Ultra Series
Pro Series
Lite Series
Panoramic Series
Special Series
ePoE Technology

• Extended PoE transmission: 800m, 10Mbps, 13w or 300m, 100Mbps, 25.4w

• Automatic set up, plug & play

• Rich selection of IP Cameras, NVRs and Network Switches

• Perfect for Analog to IP Migration: IP video, audio, control & power ( 4 in 1 ) over coax cable



Dahua ePoE technology is suitable for both IP systems and low-cost analog-to-IP upgrades.

The benefits for each use case are described as follows:

A. ePoE over Network Cable

Surveillance systems monitoring large spaces such as warehouses, parks, gardens, and outdoor parking lots feature camera locations that are dispersed and far from the control center at distances usually longer than 100 meters. The conventional approach is to add repeater devices to extend the transmission range. However, this increases equipment and installation costs as a power supply and junction box are required to install the repeater. It also makes the system harder to maintain and increases the risk of product failure.

The Dahua ePoE IP system offers a very simple and effective solution. Dahua ePoE supports transmission of both power and video, audio, and control signals over up to 800 meters via traditional Cat5 Ethernet cable. It greatly simplifies network construction as only one cable is required to connect from the front-end to the back-end devices, which results in higher reliability and lower installation and maintenance costs for the whole system.

B. ePoE over Coaxial Cable

During the migration of analog surveillance systems to a network-based system, reusing existing coaxial cable can greatly reduce installation costs. The reuse of existing cables needs to address 3 issues: The IP video signal and RJ45 connection must be converted to be compatible with coaxial cable, the system needs to support the full length of the coaxial cables, and power must be transmitted over coaxial cable. The Dahua ePoE IP system addresses all of these issues, making it easy to reuse existing coaxial cable within an IP video system. The Power over Coaxial Extender LR1002 connects to the Ethernet port of IP cameras or network switches on the one end and coaxial cable on the other end. Dahua ePoE supports transmission of up to 1,000 meters over RG59 coaxial cable at 10Mbit/s, and delivers PoE power to the IP camera. It’s a simple and effective plug and play solution that can significantly reduce the cost of analog to IP migration.

Dahua provides a complete solution for ePoE IP systems including IP cameras, NVRs, and network switches.

The system has the following features:

1.Extended PoE transmission: 800m @ 10Mbps & 13W or 300m @ 100Mbps & 25.5W

2.Automatic set up, plug & play

3.Perfect for analog to IP migration: IP video, audio, control & power (4 in1) over coax cable with LR1002 ePoE to BNC adaptor
