Network Recorders

Innovative Technology | Reliable Quality | End-to-End Service

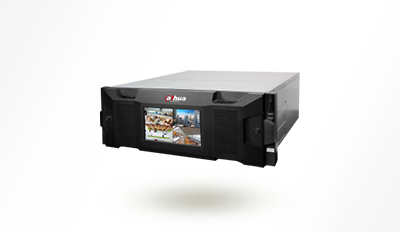

Dahua Ultra, Pro, and Lite Series network recorders are tailored to fit different applications. Ultra Series recorders offer the best performance and highest quality. Pro Series devices are perfect for mid-large size businesses and projects which require a balance between performance and budget. Lite Series recorders are designed for optimum cost performance with strict Dahua quality standards.

Dahua network recorders are equipped with various video channel capacities and physical sizes to cater to various use cases. Up to 256CH/unit with 4U size is suitable for applications with high recording requirements but without additional IP storage to on save costs, such as in schools, casino, building complexes, etc. 4CH/unit small box recorders are typically used in applications at home or small businesses like retail shops.

Products

Utra-AI series
Pro-AI series
Lite-AI series
Ultra Series
Pro Series
Lite Series
ePoE Technology

• Extended PoE transmission: 800m, 10Mbps, 13w or 300m, 100Mbps, 25.4w

• Automatic set up, plug & play

• Rich selection of IP Cameras, NVRs and Network Switches

• Perfect for Analog to IP Migration: IP video, audio, control & power ( 4 in 1 ) over coax cable



Dahua ePoE technology is suitable for both IP systems and low-cost analog-to-IP upgrades.

The benefits for each use case are described as follows:

A. ePoE over Network Cable

Surveillance systems monitoring large spaces such as warehouses, parks, gardens, and outdoor parking lots feature camera locations that are dispersed and far from the control center at distances usually longer than 100 meters. The conventional approach is to add repeater devices to extend the transmission range. However, this increases equipment and installation costs as a power supply and junction box are required to install the repeater. It also makes the system harder to maintain and increases the risk of product failure.

The Dahua ePoE IP system offers a very simple and effective solution. Dahua ePoE supports transmission of both power and video, audio, and control signals over up to 800 meters via traditional Cat5 Ethernet cable. It greatly simplifies network construction as only one cable is required to connect from the front-end to the back-end devices, which results in higher reliability and lower installation and maintenance costs for the whole system.

B. ePoE over Coaxial Cable

During the migration of analog surveillance systems to a network-based system, reusing existing coaxial cable can greatly reduce installation costs. The reuse of existing cables needs to address 3 issues: The IP video signal and RJ45 connection must be converted to be compatible with coaxial cable, the system needs to support the full length of the coaxial cables, and power must be transmitted over coaxial cable. The Dahua ePoE IP system addresses all of these issues, making it easy to reuse existing coaxial cable within an IP video system. The Power over Coaxial Extender LR1002 connects to the Ethernet port of IP cameras or network switches on the one end and coaxial cable on the other end. Dahua ePoE supports transmission of up to 1,000 meters over RG59 coaxial cable at 10Mbit/s, and delivers PoE power to the IP camera. It’s a simple and effective plug and play solution that can significantly reduce the cost of analog to IP migration.

Dahua provides a complete solution for ePoE IP systems including IP cameras, NVRs, and network switches.

The system has the following features:

1.Extended PoE transmission: 800m @ 10Mbps & 13W or 300m @ 100Mbps & 25.5W

2.Automatic set up, plug & play

3.Perfect for analog to IP migration: IP video, audio, control & power (4 in1) over coax cable with LR1002 ePoE to BNC adaptor
