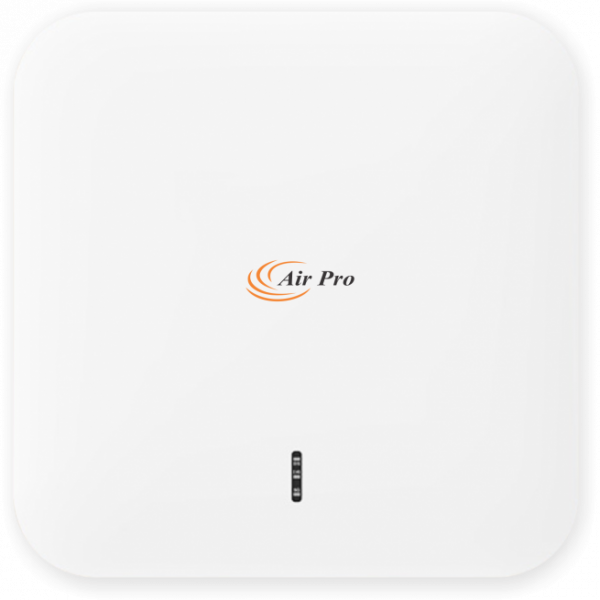

XDS6500 is an 11ac Wi-Fi standard Qualcomm Chipset high power industrial Ceiling Wireless Access Point support MU-MIMO, Wave2.0.Combined 2200Mbps Wi-Fi speed over 3 radios: 2.4GHz(400Mbps)+5GHz(900Mbps)+5GHz(900Mbps), equipped Gigabit WAN & LAN port, fast Ethernet data rate make more than 200 end users can access into XD6500 with faster speed, make them to enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks, widely be used in school, hospital, hotel, office, shipping mall…
Shop
AirPro – XDS6500
- Comply with IEEE 802.11ac/b/g/n, tri-band, 2200Mbps Data Rate.
- 1*10/100/1000Mbps WAN Port, 1*10/100/1000Mbps LAN Port, Gigabit Ethernet.
- 500mW high power, build in 5dBi MIMO antenna, stronger signal strength, more wireless coverage, 32M Flash, 512M DDR3 RAM, more user, more stable.
- Support active IEEE 802.3at 48V PoE standard.
- Support SSID broadcasting, Multi SSID up to 12 (4 SSID in 2.4GHz, 8 SSID in 5GHz).
- Support Gateway (PPPOE, static IP, dynamic IP) , Wireless AP, Repeater, WISP operation mode.
- With function of build in firewall, IP filter, URL filter and MAC filter.
- Comply with IEEE 802.3az standard, RF power adjustment and frequency analyzer for better application in different environment.
- Support DDNS, VPN pass through, Port forwarding and DMZ host.
- Support 64/128-bit WEP security, EAP, 128bit WPA (TKIP/AES) security.
What This Product Does
HIGH POWER FOR MORE RANGE AND STABLE SIGNAL:
Designed in Power Amplifier on PCB board, the power can be 500mW high power, 5dBi MIMO high gain antenna, together with Ceiling mount, greatly increase the wireless range and supply the stable Wi-Fi signal for users.
METAL CASE, PERFECT HEAT DISSIPATION TO EXTEND THE WORKING LIFE:
The bottom shell with metal shell, improved the heat dissipation function, make it work as normal in -30°C to 70°C, extend the device working life.
WAVE 2 TECHNOLOGY:
With Wave 2 Technology, it adopt 256QAM modulation, support MU-MIMO (Multi-User Multiple-Input Multiple-Output), 8 Spatial Steams, greatly to improve the communication efficiency.
POWER OVER ETHERNET AND DC POWER AVAILABLE:
XDS6500 has integrated IEEE802.3at Power over Ethernet (PoE), for easy installation and lower cost. What’s more, it support DC input if need, So it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.
ACCESS CONTROLLER SYSTEM & CLOUD MANAGEMENT SYSTEM:
With Access Control System, plug and play, zero configure the AP’s IP address, ESSID, Channel, Password, upgrade firmware, backup and restore. What’s more, the AC controller with local authentication function, easy to do advertisement and captive portal authentication like Member/WeChat/SMS login. Besides that, administrator can remote manage the AC controller or wireless AP at any place/time, simple and cost save in maintenance.
