AirPro – XDS9500s

  • High Power 300Mbps Access Point
  • 2*5 dbi MIMO Antenna
  • WPA/WPA2 encryptions for defence against security threats
  • Seamlessly compatible with 802.11b/g/n devices
  • Supports 24V/1A PoE
  • Support Multiple SSID
  • Support 802.1Q VLAN
What This Product Does

AirPro XDS9500S is a 300Mbps High power Ceiling Wireless Access Point with Qualcomm QCA9531 Chipset. It Complies with IEEE 802.11b/g/n standard, providing Internet access at a data rate of 300Mbps, featuring MIMO omni antenna inside with the 500mW high RF power together with PoE, and making it easy to set up in different environments.

XDS9500S is designed specifically for business-class environments, such as hotels, airports, coffee shops, shopping centers, sporting venues and university campus. It comes with Ceiling Mount case, Qualcomm chipset hardware, 16M Flash, 64M DDR2. Firmware works with AC controller for central management and captive portal authentication function.

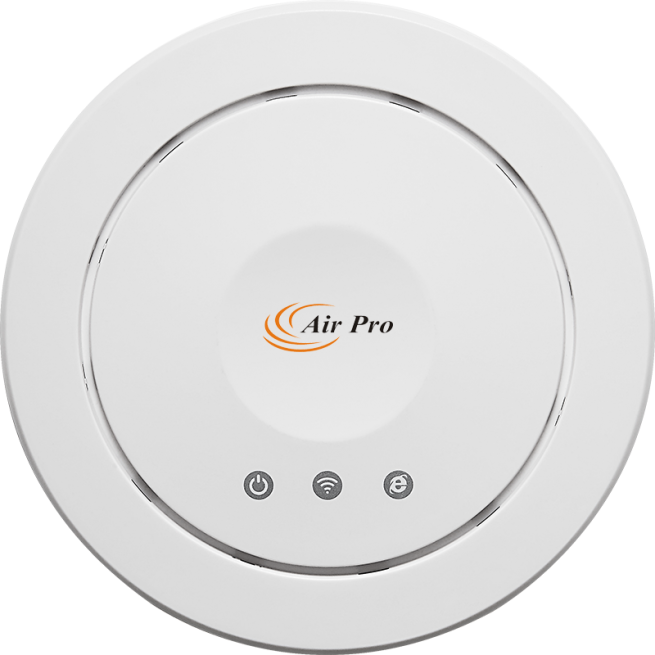

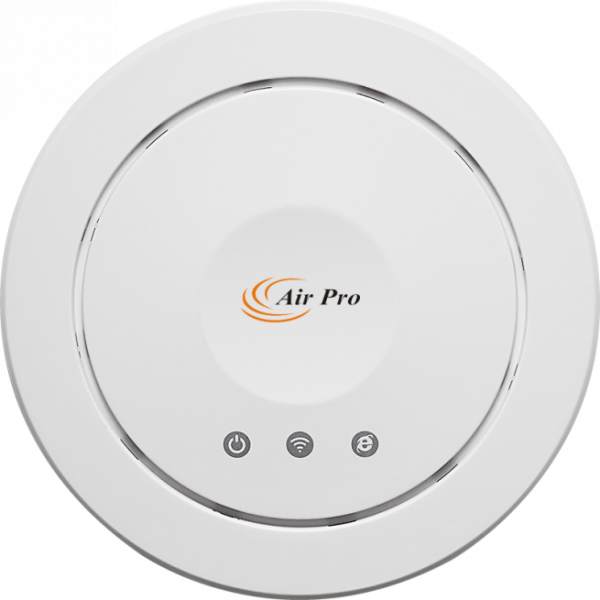

Stylish Ceiling Mount Design

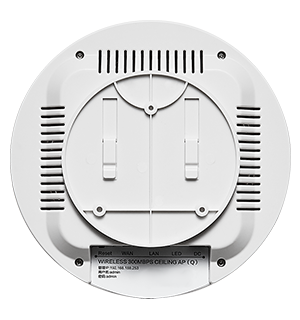

Housed in stylish ceiling mountable case, XDS9500S can be installed on a ceiling or wall; it blends nicely with most interior decorations in a modern hotel. As it is installed high on the ceiling, it extends optimum wireless signal to multiple neighboring rooms and better heat radiations.

High Power and Whole Coverage

XDS9500S comes with 500mW high power and is internally equipped with 2X2 multiple-input, multiple-output (MIMO) 5dBi omni antennas, help improving frequency range and maximizing data rates. At an indoor operating range of 40-50 meters, wirelessly covers 6~8 hotel rooms and allows simultaneous access to upto 50 users with a data rate of upto 300Mbps, ensuring sufficient level of service to many users.

Power over Ethernet

The device has integrated Power over Ethernet (PoE) for easy installation and is available at affordable cost. Therefore, it can be installed in areas where power outlets are not promptly accessible, thereby eliminating the mess of altering existing network infrastructure. But please note XDS9500S supports 24V Passive PoE or 48V IEEE 802.3af PoE.

WLAN Controller & Cloud Server Support

XDS9500S works with Access Control System, allows easy access to advanced network settings through PC, including AP status monitor, change IP address, ESSID, channel, password, upgrade firmware, backup and restore, etc.

Also, this wireless access point works with Cloud Server, providing easy remote management, advertisement and captive portal authentication. Additionally, the billing function is likely to be included in the near future, which makes this AP more professional in Wi-Fi Projects.



MCU Qualcomm QCA9531
RF 2T2R, 300Mbps MIMO tech , comply with IEEE 802.11b/g/n standard
Memory 64MB DDR RAM
Flash 16MB
Interface 2 x RJ-45 for 10/100 Mbps WAN/LAN Port (WAN port support IEEE 802.3af POE)
1 x Reset button(Reset & Factory Defaults)
1 x Power DC Jack
Power DC: 12V/1A; 110V/220V
XD9500Q: 24V Passive PoE
XD9508Q: IEEE 802.3af  48V PoE
Antenna Build in 2PCS Omni 5dbi antenna
Size 168*35mm
Frequency 802.11b/g/n, 533MHz
U.S.,Europe and Japan product covering 2.400 to 2.4835 GHz,programmable for  different country regulations
Modulation OFDM = BPSK,QPSK, 16-QAM, 64-QAM
Throughput 300 Mbps
Sensitivity 802.11n: -70dbm@MCS7,       -88dbm@MCS0.
802.11g: -72dbm@54Mbps,      -88dbm@6Mbps.
802.11b: -85dbm@11Mbps,      -94dbm@1Mbps.
RF Power 802.11n: @MCS7:22±2DB,    @MCS0:24±2DB.
802.11g: @54M:23±2DB,      @6M:25±2DB.
802.11b: @11M:26±2DB,      @1M:28±2DB
EVM 802.11n: ≤-28 DB
802.11g: ≤-25 DB
802.11b: ≤-10 DB
PPM ±20ppm
Max Uses 64+


Operation Mode Gateway/ AP/ Repeater
Protocol/Standard IEEE 802.3(Ethernet)
IEEE 802.3u(Fast Ethernet)
IEEE 802.11b/g/n(2.4G WLAN)
Wireless Auto-Channel selection
Distance Control (802.1x Ack timeout)
Security WEP Encryption-64/128/152 bit
WPA/WPA2 Personal (WPA-PSK using TKIP or AES)
WPA/WPA2 Enterprise (WPA-EAP using TKIP)

ManagementPhysical Property

System Settings Web-based configuration (HTTP/Telnet)
Firmware Upgrade Upgrade firmware via web browser or TFTP
Administration Admin Password can be configured
System monitoring Status in hand , useful statistic and Event log
Logs Supports local logs, logs host, logs file export
Reset Reset or factory defaults
Backup Restore settings & configuration of the device to local file
Temperature Working: -20°C~55°C
Storage: -40°C to 70°C
Humidity 5%~95% (typical)
XDS9500S complete set
User Manual
90mm LAN Cable
Setting Accessory
24V PoE adapter
