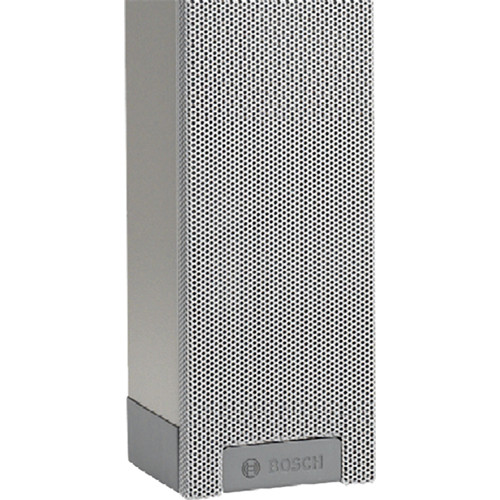

Bosch – LBC 3200/00 Line Array Indoor Loudspeaker

  • Slim Metal Design
  • Uniform Sound Distribution
  • Voice Evacuation Compliant
  • 45W Peak Power

This loudspeaker, with its good directivity, can handle small and medium indoor environments such as congress venues, meeting rooms, showrooms and canteens. The full frequency range of the LBC 3200/00 makes it ideal for speech as well as music reproduction. Its exceptionally narrow housing (only 8 cm wide) makes it extremely unobtrusive.

The LBC 3200/00 Line Array Indoor Loudspeaker from Bosch is a compact loudspeaker ideal for speech and music reproduction in small to mid-sized venues, such as meeting rooms, showrooms, and more. The speaker provides an extended listening area with uniform sound distribution throughout the room for excellent intelligibility. The speaker is voice evacuation compliant and meets EN 54-24 and EN 60849 standards for emergency and evacuation purposes.

The slim metal cabinet has a neutral grey finish for an unobtrusive look. It has a screw terminal block input for compatibility with a variety of sound systems. It also has a 45W peak power rating for a powerful, low-distortion performance. A wall mounting bracket is included for convenient installation.

  • Ideal for speech and music reproduction in small to mid-sized venues, such as meeting rooms, showrooms, and more
  • The speaker provides an extended listening area with uniform sound distribution throughout the room for excellent intelligibility
  • The speaker is voice evacuation compliant and meets EN 54-24 and EN 60849 standards for emergency and evacuation purposes
  • The slim metal cabinet has a neutral grey finish for an unobtrusive look
  • The screw terminal block input provides compatibility with a variety of sound systems
  • The speaker has a 45W peak power rating for a powerful, low-distortion performance
  • A wall mounting bracket is included for convenient installation

Specifications

PowerRated: 30/15/7.5 W
Max: 45 W
SPL106 dB (30 W, 1 kHz)
91 dB (1 W, 1 kHz)
108 dB (30 W, 2 kHz)
93 dB (1 W, 2 kHz)
Frequency Range190 Hz - 18 kHz (-10 dB)
AngleOpening: 1 kHz/4 kHz (-6 dB)
Horizontal: 220/130�
Vertical: 70/18�
Input Voltage100 V
Input Impedance333 ohms
ConnectorScrew terminal block
CabinetMetal with light grey finish
EnvironmentalOperating Temp: -13 to +131�F (-25 to +55�C)
Storage Temp: -40 to +158�F (-40 to +70�C)
Relative Humidity: < 95%
Dimensions (HxWxD)23.6 x 3.2 x 3.5" (600 x 80 x 90 mm)
Weight6.6 lbs (3 kg)



Functions

Range of Application

The LBC 3200/00 is part of the XLA 3200 (eXtended Listening Area) range of line array loudspeakers. The positioning of the loudspeaker drivers has resulted in greatly improved audio directivity. The specially developed high quality drivers enable reproduction of remarkably clear, natural sound, giving excellent intelligibility of both speech and music. Greater coverage is achieved, so more people can be reached with perceptually perfect sound. All this makes this small line array loudspeaker very suitable for use in small to medium sized applications.

Easy Installation

The positioning of the drivers in the array generates larger vertical opening angles for high frequencies, reducing the narrow ‘beaming’ of higher tones. As an example, the vertical opening angle is still 18° at 4 kHz. Having larger vertical opening angles makes installation easier, as the positioning of the
loudspeakers is easier because they cover a wider area. An extremely wide horizontal opening angle of 130° at 4 kHz means that a single loudspeaker can provide natural sound reproduction over an extensive listening area.

Suppressed Side Lobes

All conventional column loudspeakers produce a main lobe of sound, which is directed at listeners, and a number of unwanted side lobes. The LBC 3200/00 has highly suppressed side lobes in the vertical plane, typically at least 8 dB of suppression from the 500 Hz octave band at 90°. This provides a much clearer, less colored sound, and greatly reduces the possibilities for acoustic feedback.

Suppressed Side Lobes

All conventional column loudspeakers produce a main lobe of sound, which is directed at listeners, and a number of unwanted side lobes. The LBC 3200/00 has highly suppressed side lobes in the vertical plane, typically at least 8 dB of suppression from the 500 Hz octave band at 90°. This provides a much clearer, less colored sound, and greatly reduces the possibilities for acoustic feedback.

Sound Reproduction

The positioning and very high quality of the 2 inch drivers contribute significantly in making the LBC 3200/00 a very efficient line array. With a sound pressure level of 106 dB at 1 m, at 30 W, loud and clear sound reproduction is possible even at a significant distance from the loudspeaker. The high-quality loudspeaker drivers used in the
LBC 3200/00 give excellent, natural sound reproduction of frequencies ranging from 190 Hz to 18 kHz. This ensures that all important frequencies for superb speech intelligibility are heard in the listening area.

Emergency Compliant

The loudspeakers ceramic terminal block, thermal fuse and heat-resistant, high-temperature wiring ensures that, in the event of a fire, damage to the loudspeaker does not result in failure of the circuit to which it is connected. This maintains system integrity, ensuring that loudspeakers within the same loudspeaker zone in other areas can still be used to inform people of the situation.

Certifications

All Bosch loudspeakers are designed to withstand operation at their rated power for 100 hours in accordance with IEC 268-5 Power Handling Capacity
(PHC) standards. These loudspeakers also comply with the Simulated Acoustical Feedback Exposure (SAFE) test, which demonstrates that they can
withstand acoustical feedback at full power for short durations. This ensures extra reliability under extreme conditions, leading to higher customer satisfaction, longer operating life, and much less chance of failure
or performance deterioration.
