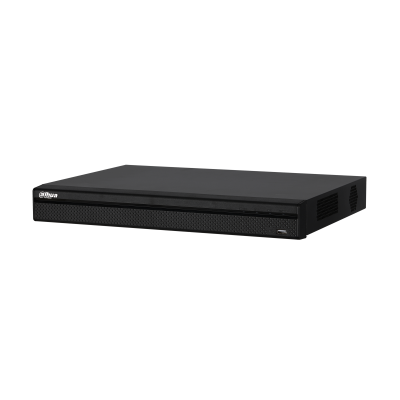

NVR5208/5216/5232-4KS2

8/16/32Channel 1U 4K&H.265 Pro Network Video Recorder (V2.00)
> Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
> Max 320Mbps Incoming Bandwidth
> Up to 12MP Resolution for Preview and Playback
> HDMI/VGA simultaneous video output
System
Main Processor Quad-core embedded processor
Operating System Embedded LINUX
Audio and Video
IP Camera Input 8/16/32 Channel
Two-way Talk 1 Channel Input, 1 Channel Output, RCA
Display
Interface 1 HDMI, 1 VGA
Resolution HDMI: 3840 × 2160 , 1920 × 1080 , 1280 × 1024,

1280 × 720 , 1024 × 768
VGA: 1920 × 1080 , 1280 × 1024,

1280 × 720 , 1024 × 768
Decoding Capability 4-ch@8MP(30fps), 16-ch@1080P(30fps)
Multi-screen Display 8CH: 1/4/8/9

16CH: 1/4/8/9/16

32CH: 1/4/8/9/16/25/36
OSD Camera title, Time, Camera lock, Motion detection, Recording
Recording
Compression Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
Resolution 12MP with 15fps, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1, CIF with 30fps
Bit Rate 16Kbps ~ 20Mbps Per Channel
Record Mode Manual, Schedule (Regular, MD(Motion Detection) , Alarm, IVS), Stop
Record Interval 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Alarm Out, Video Push, Email, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering
Alarm input 4 Channel
Relay Output 2 Channel
Playback and Backup
Sync Playback 8CH: 1/4/9
16/32CH: 1/4/9/16
Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom
Backup Mode USB Device/Network
Third-party Support
Third-party Support Arecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC, LG, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Watchnet and more

Download

Download Datasheet
