NVR5424-24P-4KS2

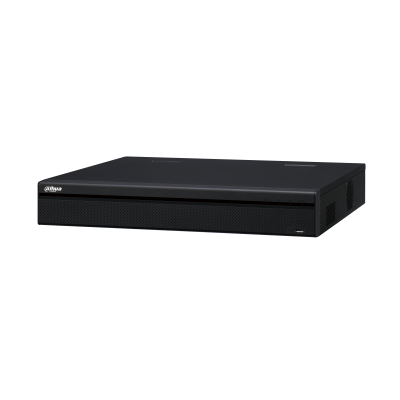

24Channel 1.5U 24PoE 4K&H.265 Pro Network Video Recorder
> Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
> Max 320Mbps Incoming Bandwidth
> Up to 12MP Resolution for Preview and Playback
> Support IPC UPnP, 24 PoE ports
System
Main Processor Quad-core embedded processor
Operating System Embedded LINUX
Audio and Video
IP Camera Input 24 Channel
Two-way Talk 1 Channel Input, 1 Channel Output, RCA
Display
Interface 2 HDMI (up to 3840 x 2160 , Different Source),

1 VGA
Resolution HDMI1：3840 × 2160 , 1920 × 1080 , 1280 × 1024,

1280 × 720 , 1024 × 768
HDMI2/VGA：1920 × 1080 , 1280 × 1024,

1280 × 720 , 1024 × 768
Multi-screen Display 1st Screen: 1/4/8/9/16/25

2nd Screen: 1/4/8/9/16
OSD Camera title, Time, Camera lock, Motion detection, Recording
Recording
Compression Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
Resolution 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1 etc.
Record Rate 320Mbps
Bit Rate 16Kbps ~ 20Mbps Per Channel
Record Mode Manual, Schedule (Regular, MD(Motion Detection) , Alarm, IVS), Stop
Record Interval 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Alarm Out, Video Push, Email, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering
Alarm input 16 Channel
Relay Output 6 Channel
Playback and Backup
Sync Playback 1/4/9/16
Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom
Backup Mode USB Device/Network/eSATA Device
Third-party Support
Third-party Support Arecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC, LG, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Watchnet and more

Download

Download Datasheet
