Bosch – LB2 Premium-sound Cabinet Loudspeaker Range
- High-fidelity music and speech reproduction
- Selectable 8 ohm, 70 V and 100 V inputs
- Compact yet robust ABS enclosure
- Supplied with adjustable mounting bracket
- Complies with international installation and safety regulations

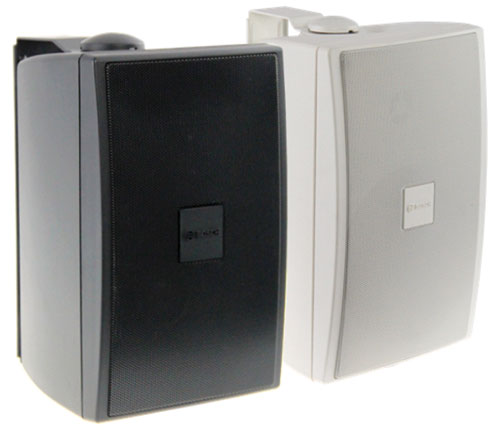

The LB2-UCxx-x1Premium‑sound cabinet loudspeakers are intended for clear reproduction of speech, foreground and background music to be used in general indoor and outdoor applications. The Premium‑sound cabinet loudspeaker range consists of a 15 W and 30 W model, available in a light or dark color. The loudspeakers have selectable 8 ohm, 70 V and 100 V inputs. The ABS cabinets are fitted with aluminum front‑grilles and standard supplied with aluminum bracket. Typical applications are: theme bars, music restaurants, theme parks, retail outlets, audio visual, boardrooms and offices, exhibition areas, showrooms, fitness centre’s and presentation environments.
Specifications
| Product | LB2-UC15-D LB2-UC15-L , LB2-UC30-D LB2-UC30-L |
| Description | Premium‑sound Cabinet Loudspeaker , Premium‑sound Cabinet Loudspeaker |
| Maximum power | 22.5 W , 45 W |
| Rated power (PHC) | 15 W , 30 W |
| Power tapping | 15/7.5/3.75/1.9 W , 30/15/7.5/3.75 W |
| Sound pressure levelat rated power / 1 W (1 kHz, 1 m) | 99/87 dB (SPL) , 105/90 dB (SPL) |
| Effective frequency range (-10 dB) | 95 Hz to 20 kHz , 100 Hz to 19 kHz |
| Opening angleat 1 kHz / 4 kHz (-6 dB) | 184° / 112° (hor.)170° / 35° (ver.) , 166° / 83° (hor.)140° / 76° (ver.) |
| Rated input voltage | 11/70/100 V , 15.5/70/100 V |
| Rated impedance | 8/326/667 ohm , 8/163/333 ohm |
| Transducers | 101.6 mm (4”) woofer, 13 mm (0.51 “) dome tweeter , 127 mm (5”) woofer, 13 mm (0.51 “) dome tweeter |
| Connection | 2 m (78.8 in.) two‑wire cable , 2 m (78.8 in.) two‑wire cable |
| Dimensions (HxWxD) | 205x136x117 mm 8.07x5.35x4.60 in , 250x 60x140 mm 9.84x6.30x5.51 in |
| Weight | Approx. 1.9 kg (4.18 lb) , Approx. 2.4 kg (5.29 lb) |
| Color | White (RAL 9010) (L) or Charcoal (RAL 7021) (D) , White (RAL 9010) (L) or Charcoal (RAL 7021) (D) |
| Operating temperature | -25 ºC to +55 ºC (-13 ºF to +131 ºF) |
| Storage and transport temperature | -40 ºC to +70 ºC (-40 ºF to +158 ºF) |
| Relative humidity | <95% |
Certifications
Quality assurance
All Bosch loudspeakers are designed to withstand operating at their rated power for 100 hours in accordance with IEC 268-5 Power Handling Capacity (PHC) standards. Bosch has also developed the Simulated Acoustical Feedback Exposure (SAFE) test to demonstrate that they can
withstand two times their rated power for short durations. This ensures improved reliability under extreme conditions, leading to higher customer satisfaction, longer operating life, and lessons the chance of failure or performance deterioration.
Ordering information
Premium-sound Cabinet Loudspeaker
Cabinet Loudspeaker 15 W, ABS enclosure, U‑bracket mounting, fixed 2 m twin‑core connection cable, water- and dust protected IP 65, charcoal RAL 7021.
Order number LB2-UC15-D1
Premium-sound Cabinet Loudspeaker
Cabinet Loudspeaker 15 W, ABS enclosure, U‑bracket mounting, fixed 2 m twin‑core connection cable, water- and dust protected IP 65, white RAL 9010.
Order number LB2-UC15-L1
Premium-sound Cabinet Loudspeaker
Cabinet Loudspeaker 30 W, ABS enclosure, U‑bracket mounting, fixed 2 m twin‑core connection cable, water- and dust protected IP 65, charcoal RAL 7021.
Order number LB2-UC30-D1
Premium-sound Cabinet Loudspeaker
Cabinet Loudspeaker 30 W, ABS enclosure, U‑bracket mounting, fixed 2 m twin‑core connection cable, water- and dust protected IP 65, white RAL 9010.
Order number LB2-UC30-L1
